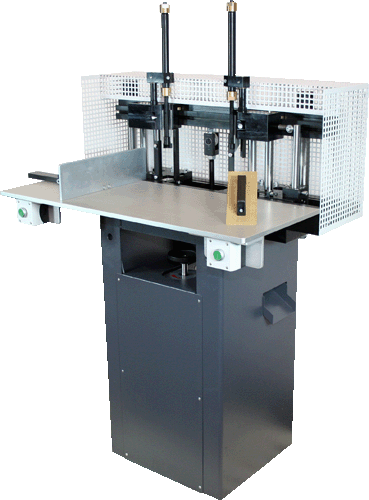

Powered corner-rounding machine on base frame.

Applications: Rounding and bevelling corners, punching thumbholes and indexes, oblong, semicircular or triangular holes, depending upon the tool used, for medium-sized press runs.

Materials Processed: Paper, cardboard, paperboard, plastics, foils.

Stack height: 80mm (stroke adjustable over a 0-100mm range)

Operation: Stacks fed in manually, powered punching process triggered via two hand switch. Stacks will be precompressed.

Operational safety: Unused stacking space secured by permanent protective system. Individual punching strokes electrical secured : every individual stroke has to be triggered via two hand switch.

Absolutely perfect edges thanks to the shearing action of top and bottom cutters.
